PRODUCT DESCRIPTION
| PRODUCT NAME: |

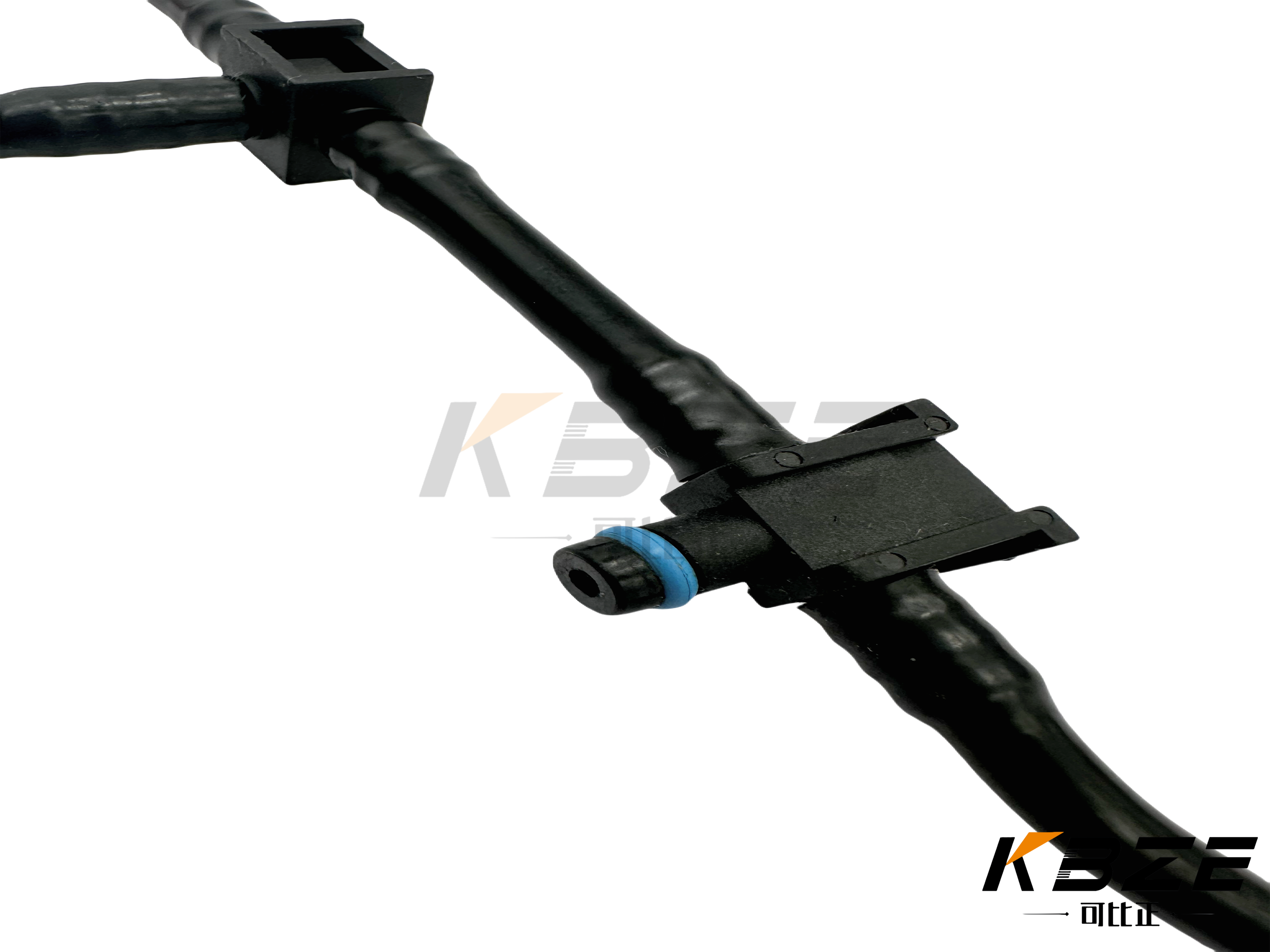

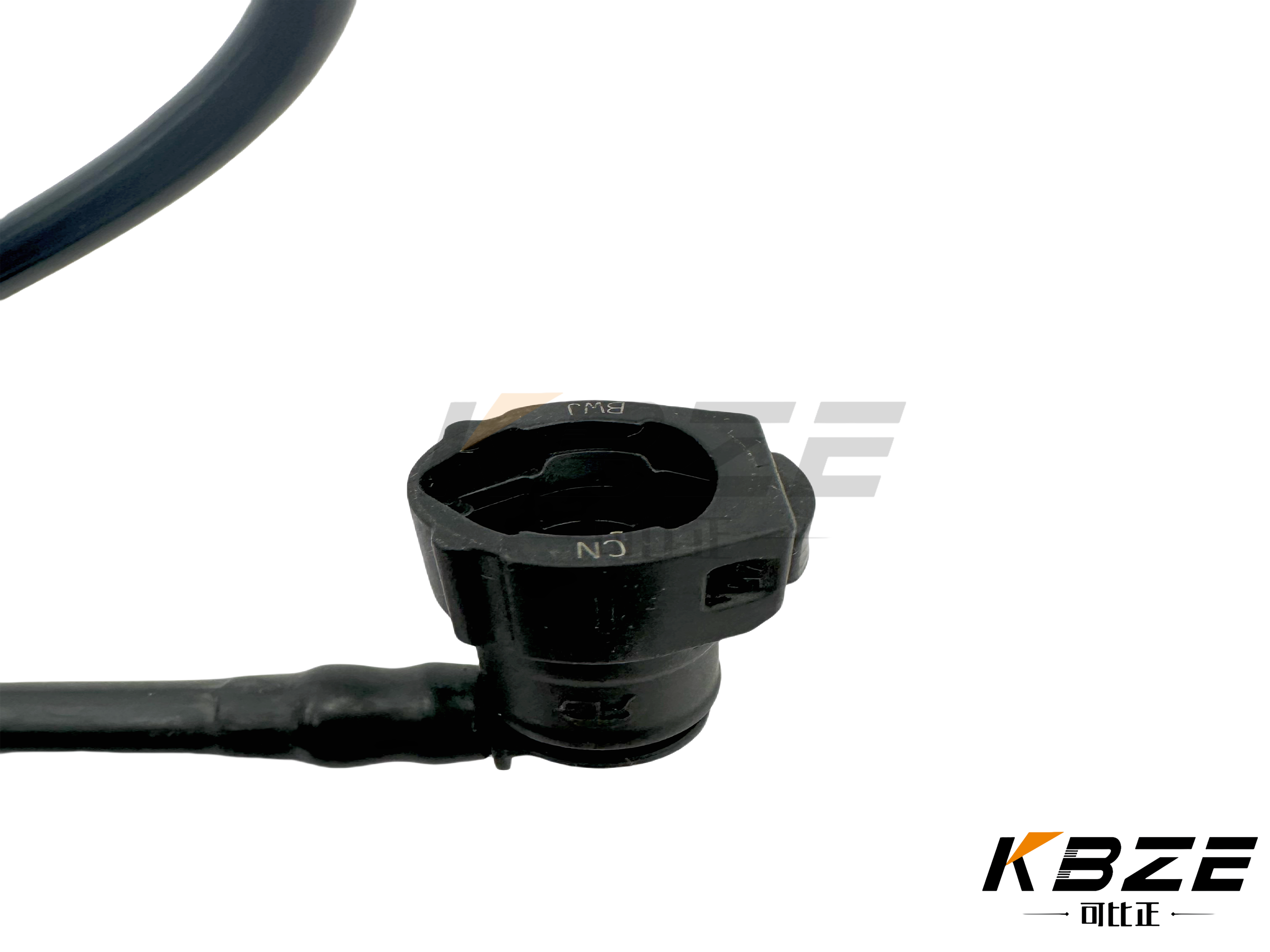

HIGH QUALITY KBZE LEAK OFF PIPE RAIL FOR JCB 3CX 4CX ENGINE SPAREPART PART NO. 320/07219
|
| PART NO: |
320/07219 |
| BRAND NAME: |
KBZE LEAK OFF RAILS PIPE |
| APPLICABLE MACHINE: |
JCB DIESEL ENGINE
|
| SIZE: |
STANDARD SIZE |
| MOQ: |
ONE PCS |
| PLACE OF ORIGIN: |
MADE IN CHINA |
| CONDITION: |
100% NEW GENUINE |
| CUSTOMIZED: |
OEM & ODM |
| DELIVERY METHOD: |
AIR, SEA, FEDEX, DHL, UPS, EMS |
| PORT |
CHINA PORT |
| SUITABLE MODEL: |
JCB EXCAVATOR
|
WE CAN SUPPLY OTHER FUEL PIPE
| VH166913750AUSI |
VH16222E0180 |
8-97362827-0 |
8-97365819-1 |
| 244-0988 |
243-6727 |
15108329 |
15103798 |
| 8-980199699-0 |
8-98019698-1 |
8-98019700-0 |
8-98258060-0 |
| 3071564 |
1-14121124-0 |
8-98014903-0 |
4369148 |
| 4436800 |
4631943 |
4629372 |
4438888 |
| 4438889 |
3089617 |
3089618 |
YB0000665 |
| 8-97362840-2 |
1-15416877-0 |
8-98258077-0 |
F04505474A |
| F04297073 |
F04902462 |
F04504995A |
D04288912 |
| VOE21165497 |
VOE21147486 |
D04502982 |
6745-71-5480 |
| 6745-71-5470 |
6745-71-5460 |
6745-71-5440 |
|
The leak-off pipe rail (also known as the return pipe rail) is an indispensable component in the fuel injection system of diesel engines. Its primary function is to collect excess fuel generated during the injection process and direct it back to the return fuel line or directly to the fuel tank. This device typically consists of multiple leak-off pipes connected to the injectors, with these pipes linked together by a manifold (rail) to facilitate the efficient recovery and reuse of fuel.
In diesel engines, maintaining stable fuel pressure and precise fuel delivery is crucial for efficient operation and optimal performance. The leak-off pipe rail plays a dual role in this process by both regulating pressure and recovering excess fuel, ensuring that fuel does not remain trapped within the injectors, which could otherwise lead to excessive pressure, uneven injection, or injector malfunction.
### Specific Functions Include:
1. **Maintaining System Pressure Balance**: The leak-off pipe rail helps to promptly discharge excess fuel from within the injectors, preventing instability in the system that could affect the precision of fuel injection. By efficiently managing the return path of the fuel, it ensures the continuous and stable operation of the injection system.
2. **Recycling and Reusing Fuel**: During the injection process, some fuel leaks or is not fully injected, leading to excess. This excess fuel is recovered through the leak-off pipe rail and reintegrated into the fuel system, reducing waste and improving fuel economy and utilization efficiency.
3. **Protecting and Extending Equipment Lifespan**: If excess fuel in the system is not promptly discharged, it can cause issues such as injector overheating or fuel buildup, ultimately leading to equipment failure. The leak-off pipe rail effectively reduces this risk, ensuring system reliability and extending the lifespan of fuel injection components.
Thus, in modern diesel engines, the leak-off pipe rail is not only an essential part of the fuel management system but also a critical technology for ensuring stable engine operation and reducing maintenance costs. Through precise design and efficient fuel management, it provides a stable operating environment for the engine while significantly enhancing fuel utilization and overall system reliability.

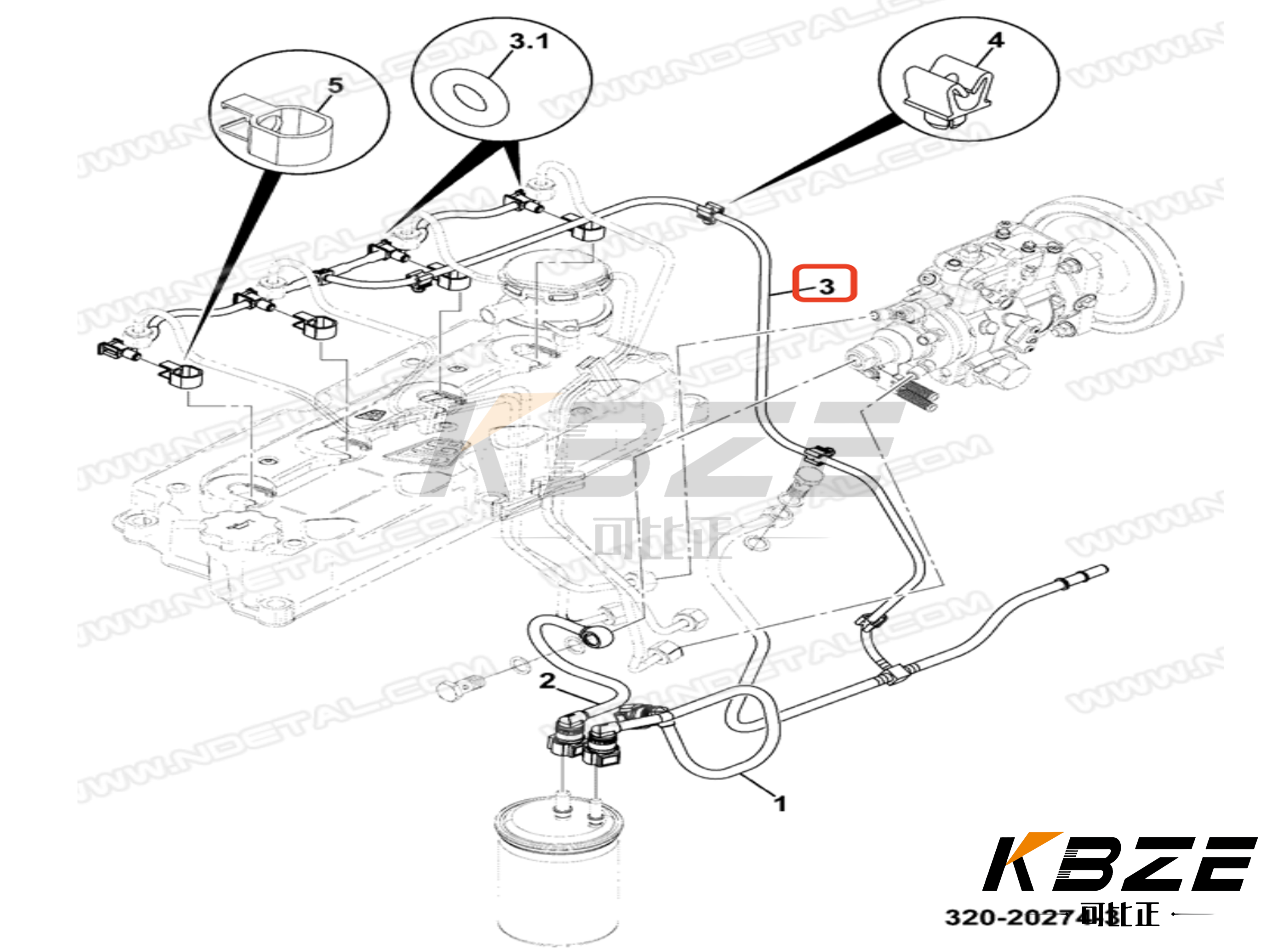

| NUM |
PART NO. |
|
REMARK |
| 1 |
320/07059 |
225T |
Pipe fuel lift pump to fuel filter |
| 2 |
320/07052 |
225T |
Pipe fuel filter to fuel injection pump |
| 3 |
320/07219 |
225T |
Pipes leak off rail |
| 3.1 |
320/07034 |
225T |
O Ring I/D3.5 x O/D7.25mm |
| 4 |
320/07055 |
225T |
Clip Pipe |
| 5 |
320/07033 |
225T |
Ring snap |
